Common NC Program-EZ-Motion-NC 60T

1. Machining program listing

O1111

N010T0101

N20M03S800

N030G00X70Z5

N040G73U25R5

N050G73P60Q120U1F200

N060G01X0Z0

N070#100=40

N080#101=20*SQRT[1-#100*#100/1600]

N090#100=#100-1

N100G01X[2*#101]Z[#100-40]

N110IF[#100GT-20]GOTO80

N120G01Z-100

N130G70P60Q120

N140M30

N150

N110

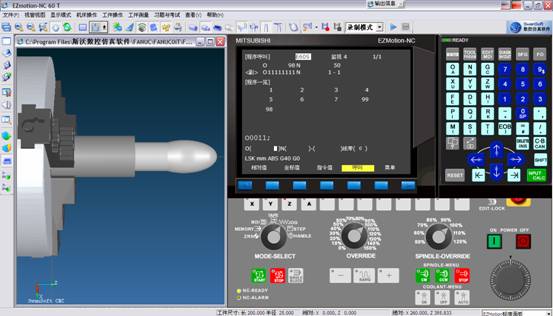

2. 3DM machining window

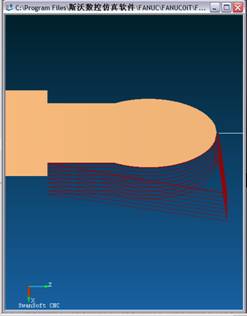

3. Two-dimensional machining trochoid
